1. (Calculations based specifically on Maximum Recommended Flow Rate of 1,600gph (7,250lph) AND a total discharge every 24 hours.)
2. Eric Three units hold only 86 gallons (390 litres) water maximum.
3. ONE PASS through the unit is the time taken for the incoming water to enter the unit and exit the unit travelling as a ‘block’.
4. ONE PASS takes 3.33 minutes thus producing 432 passes per day.
5. Annually this creates a 151-mile long river!
6. Annually this river actually processes 14,016,000 gallons of water!
7. Annually only a miserly 31,390 gallons or 0.23% of the total water being processed is discharged to waste.

Maximum pond base coverage for good vacuum effect to the pond base at this flow rate is 4m x 4m.

1. a. At a 3-metre pond depth this is 6,000 gallons or 27,000 litres.
2. b. At a 2-metre pond depth this is 4,000 gallons or 18,000 litres.
3. c. At a 1-metre pond depth this is 3,000 gallons or 13,500 litres

DAILY total discharge time represents MUCH less time taken than one miserly pass per day. Providing that the 4” bore tube to waste is maintained.

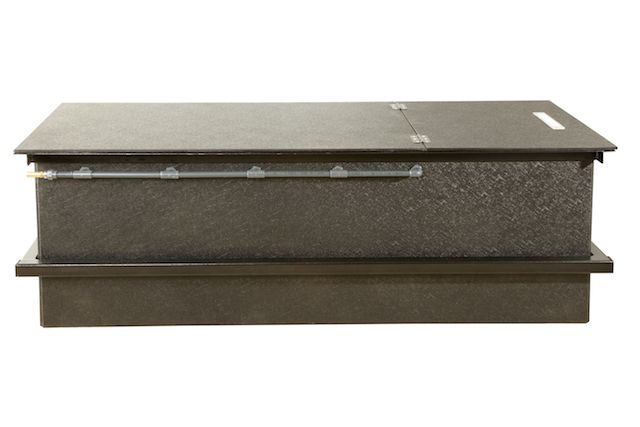

ERIC Three Dimensions
