New Eric Pond well underway in Lincolnshire


This pond is being built for an experienced Koi enthusiast who has been separated from his Koi (through business reasons) for several years.

His family’s home is in one of the most charming ‘olde-worlde’ villages I’ve ever seen.

His work carries him to most parts of the world and sometimes it’s difficult to get hold of him.

On the first trip down there to meet him, he showed me the garden and what he had in mind.

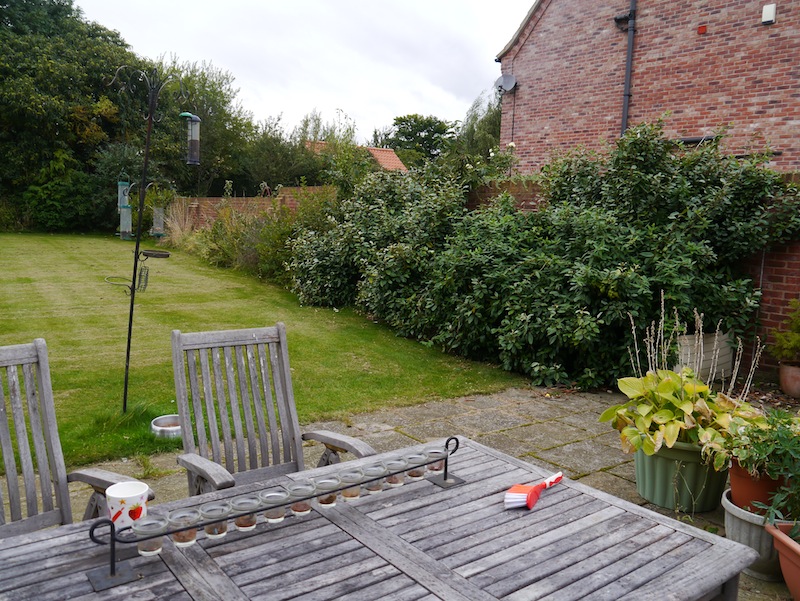

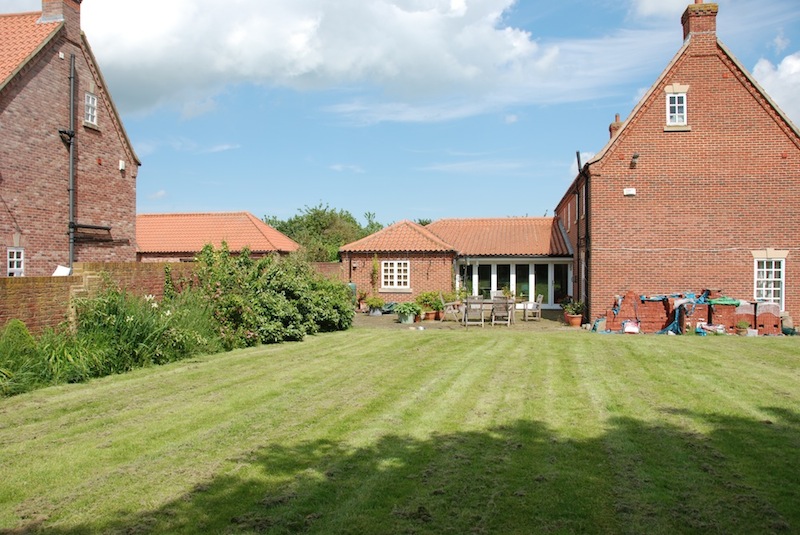

Garden before pond build 1

Garden before pond build 1

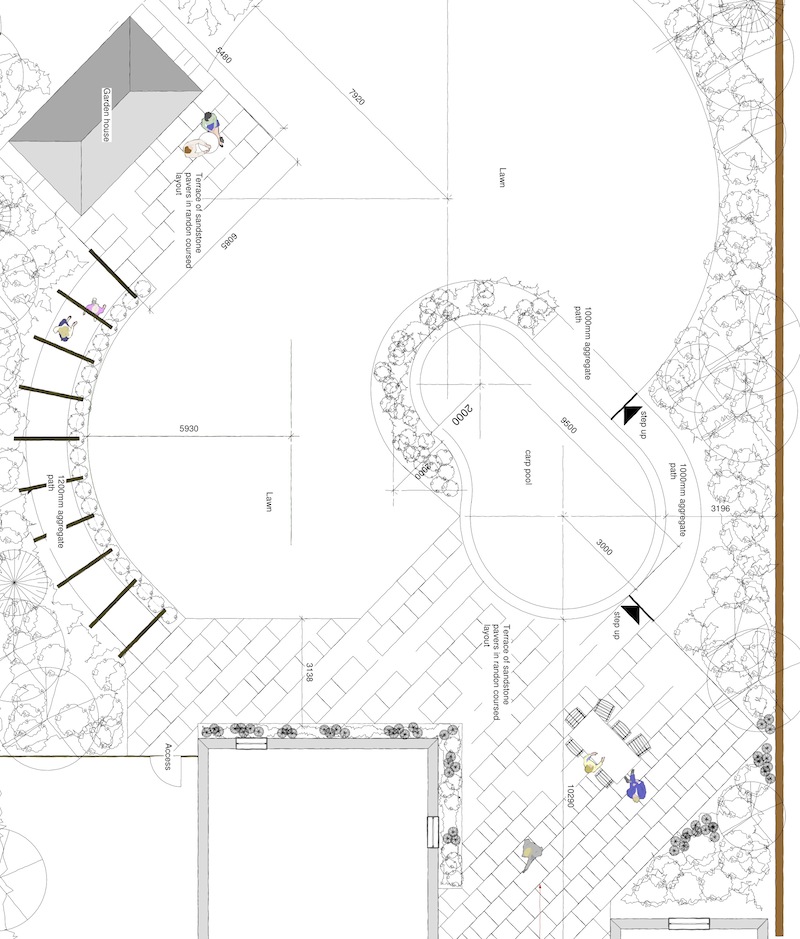

And later he sent a wonderful plan of what his landscaper had in mind for the entire garden.

Plans for Garden Koi Pond

I worked out the volume of the system (around 18,000-gallons) and recommended it would take four E4 units to filter it perfectly. These were delivered in late 2012.

Four Eric Four units

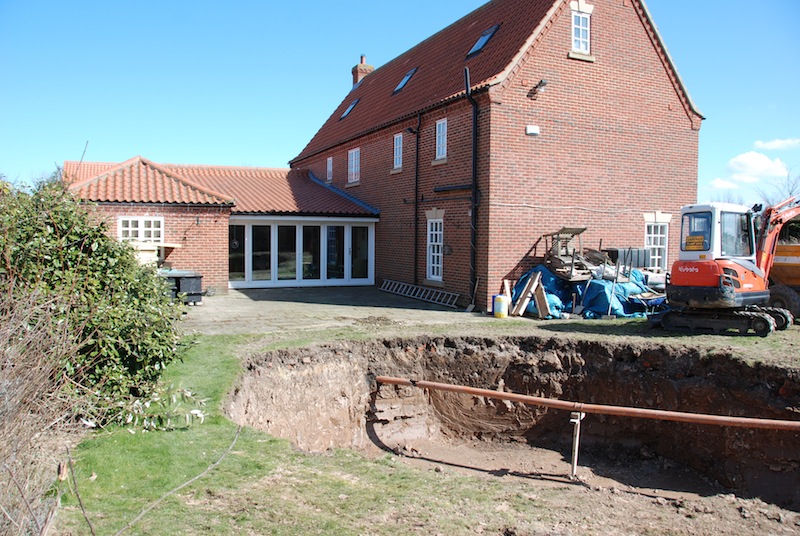

Because of the bad winter we’ve experienced, excavation work didn’t commence until April 2013 but once commenced it only took a day or so to complete, thankfully the ground was bone dry but the drain line had to be diverted.

Excavation started

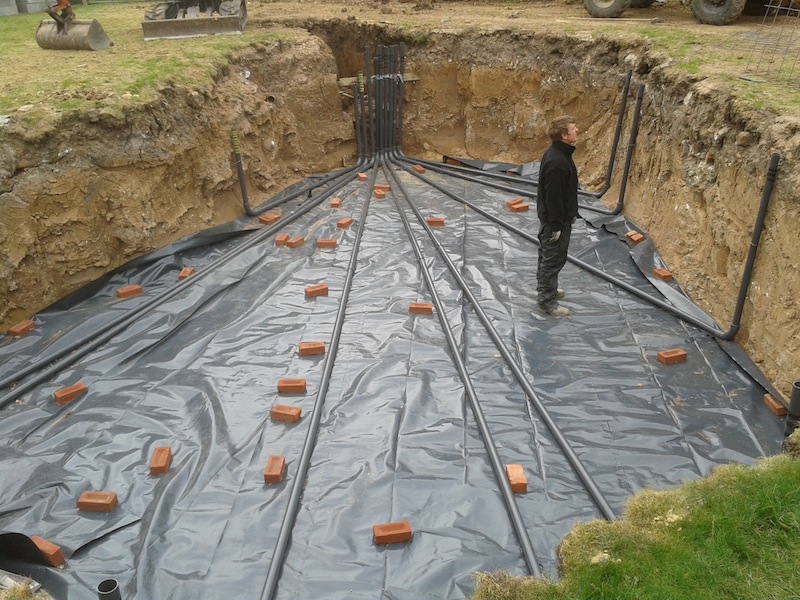

Ian Miles stepped in here to lay 2” feed and return pipelines on the plastic covering the base.

2inch Pipework laid down

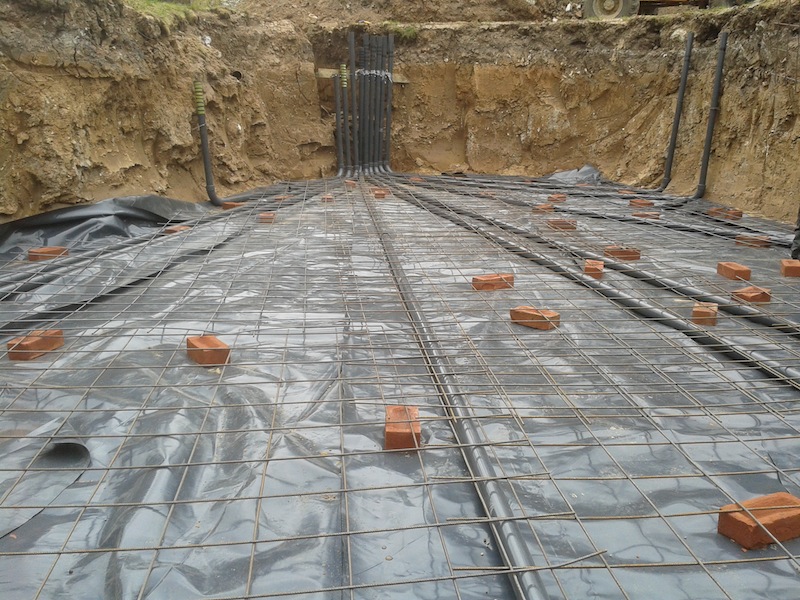

After this the re-bar was placed in readiness for the first 6” concrete base. Please note all the lines have been clearly marked for future identification.

re-bar was placed at the bottom of the pond

Pipe lines marked for identification

This shows the first base being poured.

First 6 inch base of concrete

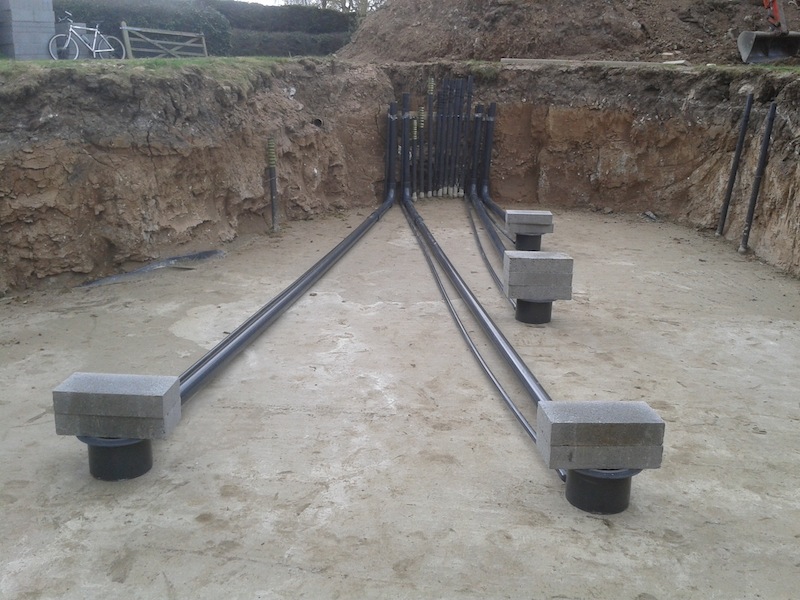

And when the first base has been cured, the bottom drains and lines can be placed.

Bottom Drain lines placed in position

Now the second base can be poured after first ensuring the drains and lines cannot ‘float’.

Secure drain lines before second base is set

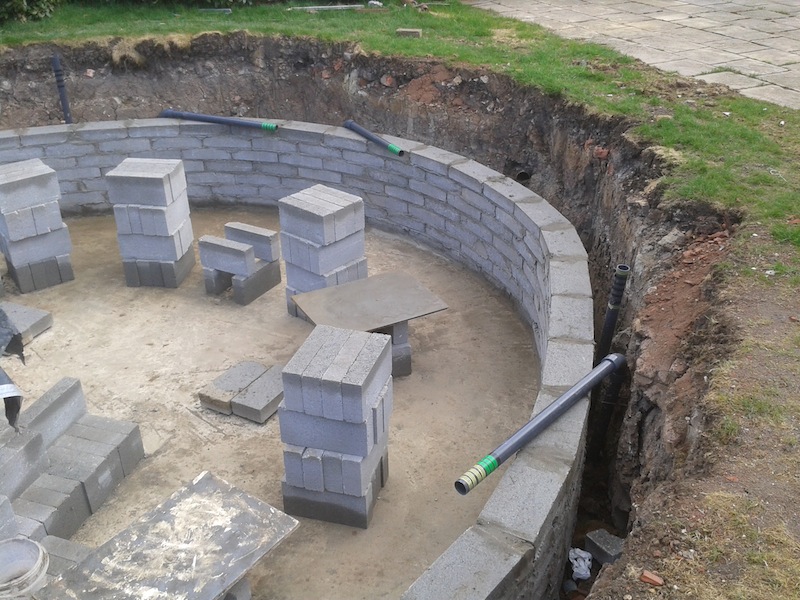

We now have a flat base and the pond walls can commence.

Walls starting to be built

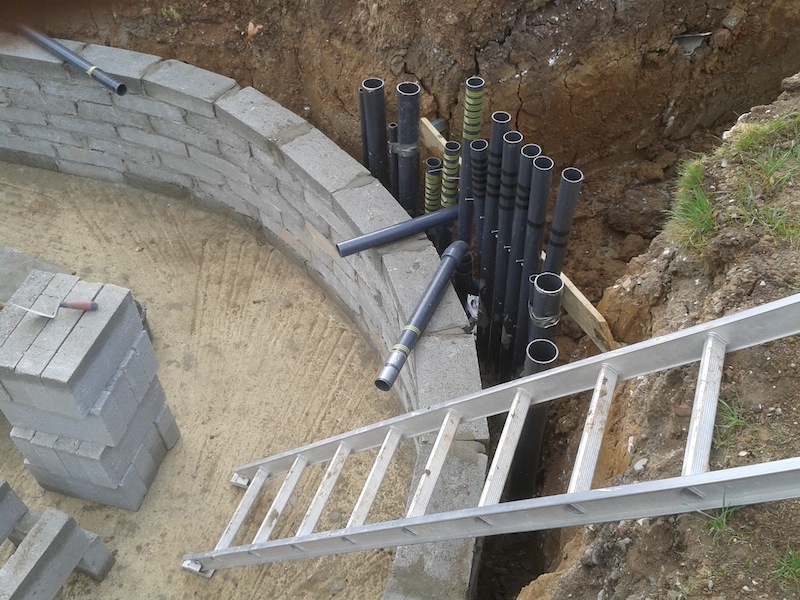

But must be stopped mid-way to allow the wall lights and return lines to be completed.

Wall Lights to be mounted

Return Lines in position

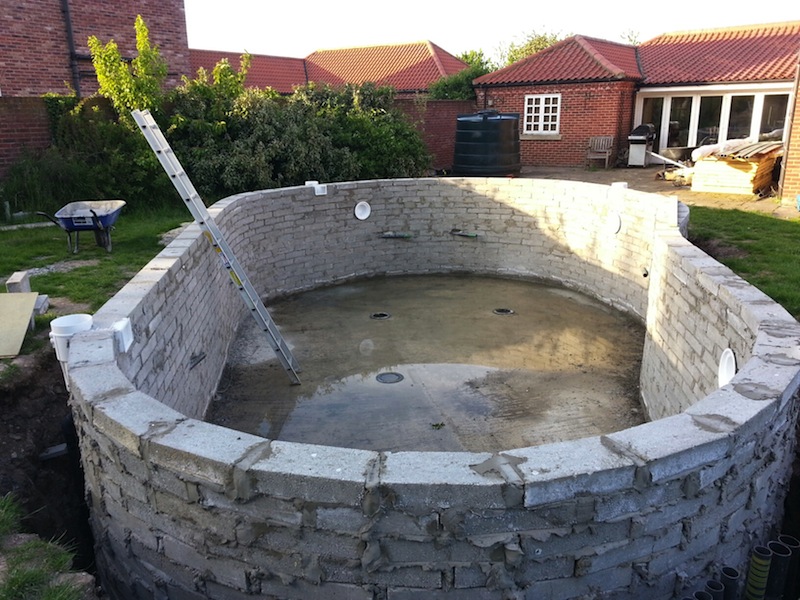

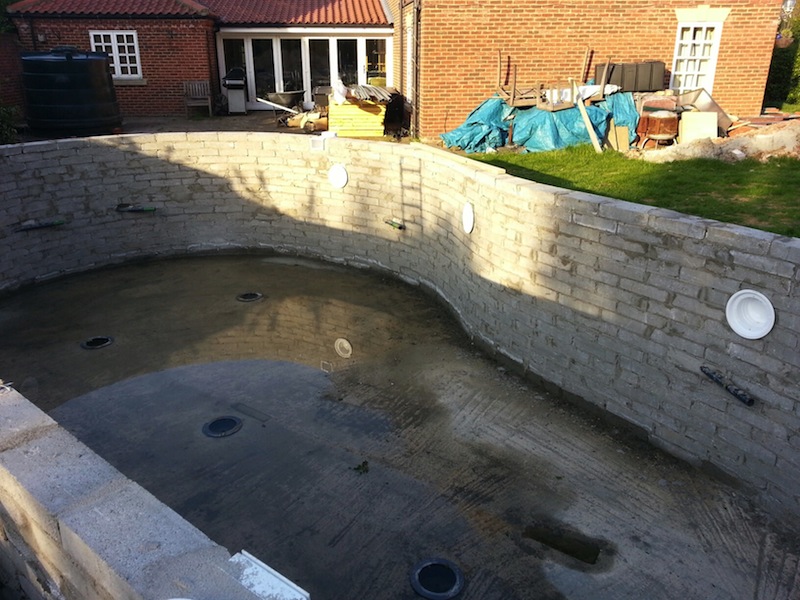

This is how the pond looks today.

Current progress of the pond

Current progress of the pond 2

There’s much more to be done on the system before completion and it will all be detailed later.
